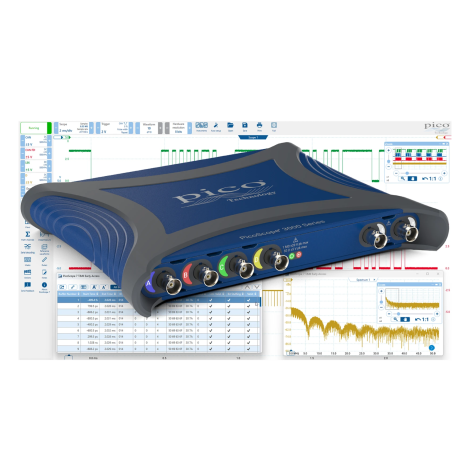

PicoScope 3418E (PQ349)

1748193 HUF 27% ÁFA nélkülSzállítási költség nélkül
Raktáron
SKU
1720771070.2313

PicoScope 3418E Series up to 500 MHz 5 GS/s digital USB oscilloscope

Delivery time: approx. 4 deliverytime_w

PICO - PicoScope 3418E (PQ349)

Where power and performance meet portability

Once again, Pico is redefining PC-based oscilloscopes with up to 500 MHz bandwidth and 5 GS/s in a compact, portable USB-powered package.

The PicoScope 3000E Series is a range of USB-powered PC oscilloscopes which are small, light, portable and provide high-performance specifications ideal for engineers working on advanced electronics and diverse embedded system technologies, either in the laboratory or on the move.

Supported by the advanced PicoScope 7 Test and Measurement software, the PicoScope 3000E Series enables the rapid cost-effective debug and performance validation of complex analog and power electronic designs. It also offers an ideal package for many other applications including embedded systems design, research, test, education, service and repair.

High bandwidth, high sampling rate, deep memory

With compact size, low cost and input bandwidths up to 500 MHz, there is no compromise on performance. This bandwidth is matched by a real-time sampling rate of up to 5 GS/s, enabling detailed display of high frequency signal detail.

Many other oscilloscopes have high maximum sampling rates, but without deep memory they cannot sustain these rates on long timebases. The PicoScope 3000E Series offers up to 2 GS of capture memory, enabling the 500 MHz PicoScope 3418E to sample at 5 GS/s all the way down to 20 ms/div (200 ms total capture time).

The PicoScope 3000E Series includes a range of powerful tools to make the most of this huge waveform memory. Easy-to-use zoom functions let you zoom and reposition the display by simply dragging with the mouse or touchscreen, while hardware acceleration ensures you see every glitch in huge waveforms regardless of the zoom level.

Memory segmentation lets you capture thousands of waveforms in quick succession and view them in the waveform buffer navigator, filtering them using criteria such as mask limit testing or measurement limits to drill down to the waveforms you need to see. More advanced tools such as serial decoding and DeepMeasureTM work to analyze data packets or events across all waveform buffers in the deep memory, making the PicoScope 3000E Series some of the most capable oscilloscopes on the market.

FEATURES:

  • 350 MHz or 500 MHz with 5 GS/s  USB powered PC oscilloscopes
  • 10-bit resolution (14 bits using enhanced resolution)
  • 2 GS ultra-deep capture memory
  • Function/arbitrary waveform generator included
  • Compact, portable and USB powered
  • 40 serial protocol decoders included as standard
  • Segmented memory, persistence and fast waveform updates
  • Advanced math, measurements, masks and digital triggering
  • PicoScope 7 for Windows ® , Mac ® & Linux® with free updates
  • Support for LabView ® , MATLAB® and writing your own code
  • 1 Probe per Channel included in each Kit
  • 5-year warranty and free technical support

Customer Questions
No Questions
Please, mind that only logged in users can submit questions
PicoScope 3418E (PQ349)
További információ
Number of Analog Channels4
Function GeneratorIgen
TouchdisplayNem
Scope TypeDSO
MárkaPico Technology
