Special Price 138817 HUF Regular Price 277633 HUF 27% ÁFA nélkülSzállítási költség nélkül

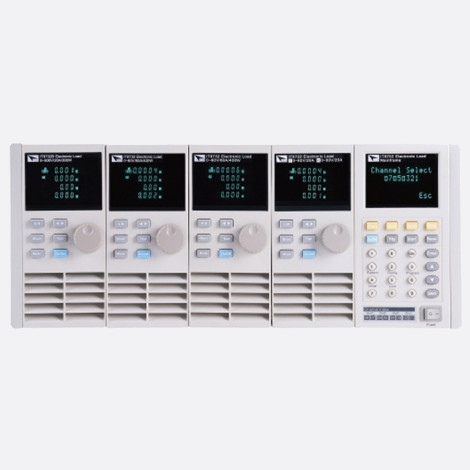

Main Frame with GPIB, USB, RS232, Ethernet, 4 slots.
This Main Frame can accomodate up to 4 IT87xx E-Load Modules


In stock (0 pc.)


IT8700 series programmable DC electronic load adopts removable modules design, with single frame control 8 channels, and 16 channels with extended mainframe extension transient mode up to 25 kHz , which improves your test efficiency, with high resolution and accuracy. Users can freely choose in the 8 load modules according to the number of channels and power requirements, controlled by mainframe control panel, or controlled by IT9000-PV8700 software via built-in LAN / RS232 / USB interface. IT8700, with adjustable slope, list function, automatic test and other functions, automatic test function can be set to work under CC / CV / CR / CP can be used in the application of R&D and production line. IT8700 has self-diagnosis and comprehensive OVP, OCP, OPP, OTP, etc., ensure the operator safety.

Key features:

• Removable modules for easy system cofigurability
• Dual-channel module can display each channel information simultaneously
• Single frame up to max.8 channels, extended frame up to max.16 channels
• Dynamic power distribution function for dual channels
• Measurement resolution: 0.1mV/0.01mA
• Measure short-circuit peak current value and peak voltage value
• Measurement speed for voltage, current up to 50kHz
• Adjustable current rising / falling slope
• Auto-test function, with automatic judgement whether the test result exceeds the set specification
• Simulate various waveforms with load under List mode
• Up to 25kHz dynamic mode
• Automatic test function can automatically determine whether the test results exceed the set specifications
• Simultaneously perform multiple sets of electronic load modules
• OVP / OCP / OPP / OTP / anti-reverse protection function
• Built-in Ether Net / USB / RS232 communication interface
• Support anti-reverse alarm function
